IĮ Signalita

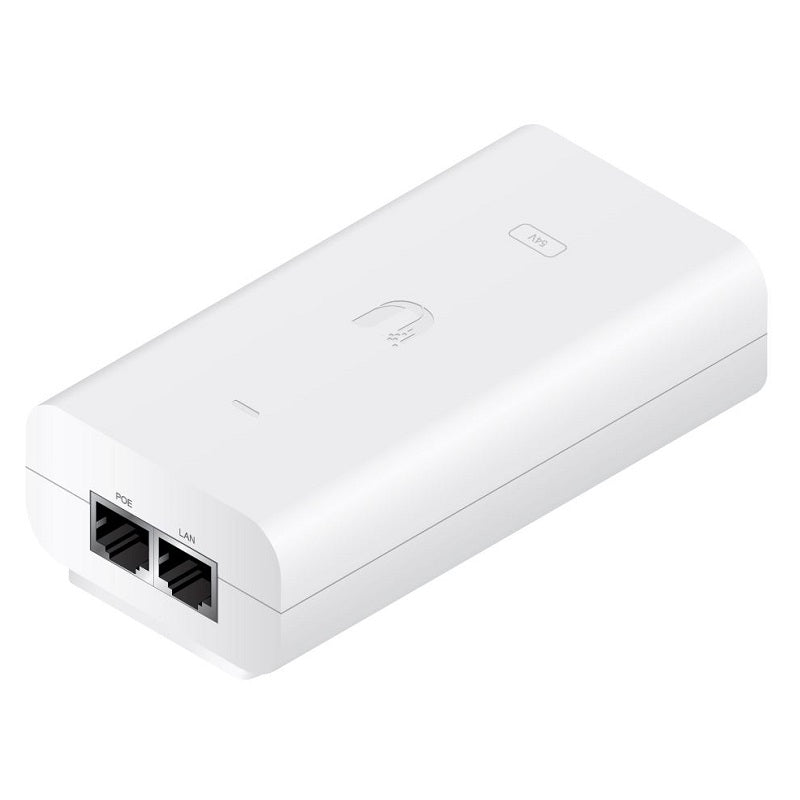

UBIQUITI 54V DC, 1,5A gigabito PoE adapteris POE-54-80W-G

UBIQUITI 54V DC, 1,5A gigabito PoE adapteris POE-54-80W-G

Įprasta kaina €39,56 EUR
Įprasta kaina Išpardavimo kaina €39,56 EUR
Išpardavimas Išparduota
Mokesčiai įtraukti. Siuntimo išlaidos apskaičiuojamos atsiskaitant.

Dimensions: 123 x 65 x 34 mm (4.84 × 2.56 × 1.34")
Weight: 299 g (10.55 oz)
Output Voltage 54VDC @ 1.5A
LAN Activity Indicator: No
Gigabit LAN Port: Yes
Remote Reset Capability: No
Reset Button: No
Input Voltage: 100-240AC @ 50/60Hz
Input Current:0.8A @ 120VAC, 0.4A @ 240VAC
Inrush Current: <80A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency: 87+%
Output Ripple: 1% Max.
Switching Frequency: 100 kHz Max.
Line Regulation: ± 1%
Load Regulation: ± 3%
4-Pair Powering: Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
Operating Temperature: 0 to 40° C (32 to 104° F)
Storage Temperature: -30 to 70° C (-22 to 158° F)
Operating Humidity: 35 to 95% Noncondensing
AC Connector: IEC-320 C6
Data IN / POE: RJ45 Shielded Socket
Surge Protection: Difference and Common Mode
Clamping Protection: 11V Data, 60V Power
Max. Surge Discharge: 1500A (8/20 μs) Power
Peak Pulse Current: 36A (10/1000 μs) Data
Shunt Capacitance: <5 pF data
Response Time: <1 ns
Compliance: IEC 60950-1:2005+A1, UL60950-1, EN55022:2010, EN55024:2010, FCC Class B
